Structured Node List

The structured node list is a Vue-based page that displays node information and lets the user perform enhanced data display, search, filter, and export data.

The main display shows a paginated table of nodes corresponding to the current search and filtering parameters. You can sort most of the columns in ascending or descending order.

You can choose among 10, 20, or 50 entries per page, navigate among pages, or go to the start or end of the currently filtered set.

Horizon web UI showing structured node list.
Figure 1. Structured Node List

The first column of each node has an Action menu where the user can do the following:

  • Choose various actions, including Info…​ to open a dialog that displays details about the node.

  • Navigate to various relevant pages (Alarms, Events, and so on).

  • Perform other actions (rescan, schedule an outage, and so on).

The Export symbol node export button lets you export the current data in either CSV or JSON format.

A gear symbol node preferences button opens the Node Preferences window that allows you to configure the columns displayed and their order. Saving this configuration also saves the current search and filtering options.

An input field above the table lets you search by node label.

The Filtering and Extended Search panel on the left lets you filter and search by various parameters.

Node table

The table displays columns of information about the nodes that match the current search and filter parameters.

The Node Label and ID fields contain links to navigate to the Node Details page.

The IP Address field contains a link to go to the IP Interface page for that interface. A tooltip will also display more information about the interface; for example, if it is managed, primary, not eligible, and so on.

The Flows field contains arrows denoting whether Ingress and/or Egress flow information is available, with a tooltip to provide more detail.

Action menu

The Action menu next to each node provides options to display the Node Details dialog and navigate to the following pages:

  • Events

  • Alarms

  • Outages

  • Assets

  • Metadata

  • Hardware Inventory

  • Availability

  • Resource Graphs

  • Node Rescan

  • Admin/Node Management

  • Update SNMP Information

  • Schedule an Outage

  • View Topology Map

Horizon node Action menu.
Figure 2. Node Action Menu

Node details

Click Info…​ in the Action Menu to view additional information about the node including its ID, IP address, location, latitude/longitude, and so on.

Horizon Node Details dialog.
Figure 3. Node Details

Download current node data

Click the download symbol to export the current node data (depending on search and filter configuration) in either CSV or JSON format.

Horizon Node download/export menu.
Figure 4. Download/Export

Node preferences

Node preferences let you specify the order in which the columns of data appear in the UI. These preferences are stored in your browser’s local storage, and so apply to anyone using the machine on which that browser runs, which may not be the OpenNMS user you are logged in as. The preferences will be retained unless cleared by your browser’s policy. Your preferences are not available on different machines or the same machine using a different web browser.

Click the gear symbol to open the Node Preferences dialog.

Horizon Node Preferences dialog.
Figure 5. Node Preferences

Click Default to reset all displayed columns to the default list visibility and order.

Click the checkbox next to each column name to display or hide that column. Note that changes take effect immediately.

Click the up and down arrows to reorder the columns.

Click Save and Close to save your settings and your current search and filtering configuration.

Click the "X" to close without saving to local storage.

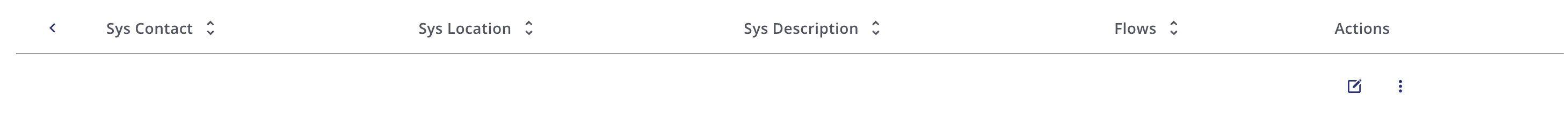

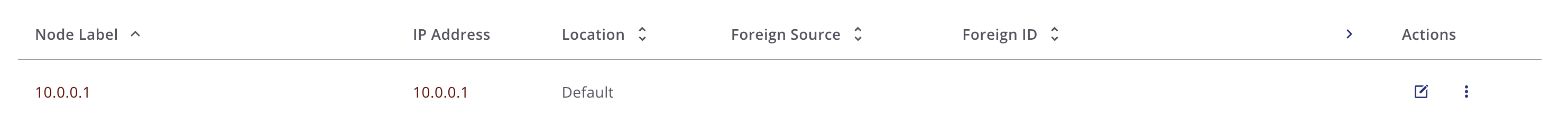

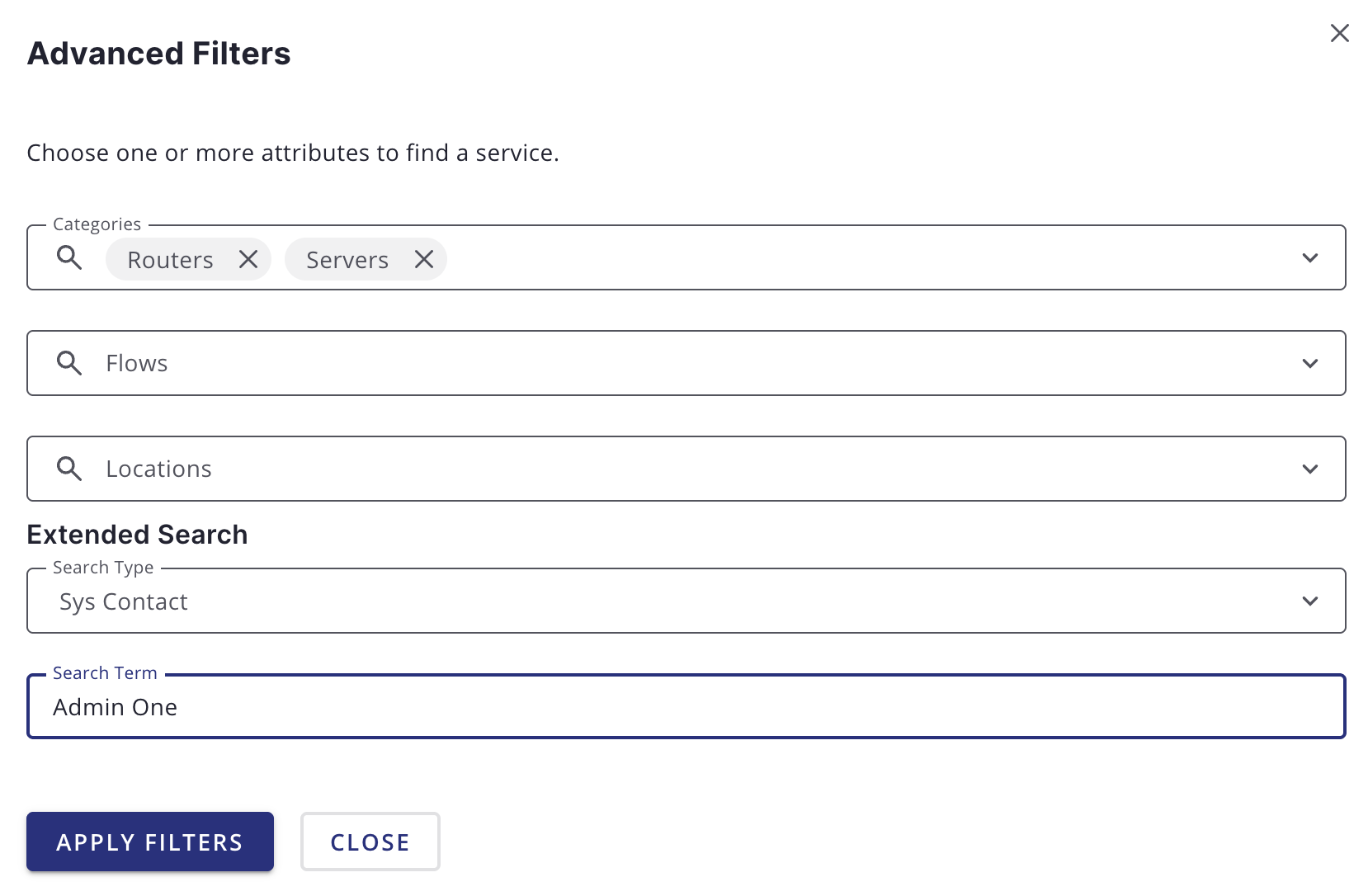

You can filter and search via the Filtering and Extended Search sections in the left panel, and by the Search node label search box above the node table. Note that searches combine the results of all configured filters and search parameters. For example, you can search by Category + Location + Extended Search Term + Node Label search term in any combination.

The input box above the Node Table lets you search by node label. This is a case-sensitive wildcard search. Entering cal will match nodes have the label localhost as well as california, but not California.


You can filter by category (for example, surveillance category), flows, and monitoring locations.

Click on an item to filter by that item. You can select more than one item per section.

As you choose items, the number of items selected for that section will display. A check symbol lets you clear the selected items for that section.

Use Clear All to clear all filters and search parameters.

Use Match All in the Categories section to display only nodes corresponding to all the selected categories.

For example, you could filter on nodes that are in both the Routers and Production categories.

Horizon Node Category Filter.
Figure 6. Category Filter

This lets you to search by additional fields. Note that some fields perform wildcard searches and some are exact searches. Also note that some fields, for example SNMP fields, are not displayed in the table, but will display in the Node Details dialog.

Item Description

Foreign Source

Search by Foreign Source only.

Foreign ID

Search by Foreign ID only.

Foreign Source:Foreign ID

Search by Foreign Source and Foreign ID in fs:fid format.

IP Address

Search by IP address. Will search only on valid IPv4 and IPv6 addresses. It will not search on wildcard or partial addresses.

Sys Contact

Performs a case-sensitive wildcard search by system contact.

Sys Description

Performs a case-sensitive wildcard search by system description.

Sys Location

Performs a case-sensitive wildcard search by system location.

Sys Name

Performs a case-sensitive wildcard search by system name.

Sys Object ID

Performs a case-sensitive wildcard search by system object ID.

SNMP Alias

Performs an exact search by SNMP alias.

SNMP Description

Performs an exact search by SNMP description.

SNMP Index

Performs an exact search by SNMP index.


Performs an exact search by SNMP name.


Performs an exact search by SNMP type.

Horizon Node Extended Search
Figure 7. Extended Search
